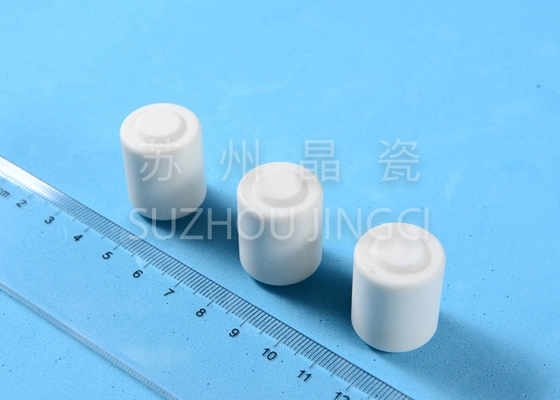

High Hardness 85HRA 3.9g/Cm3 Ceramic Plunger
Product Description
| Name: | Alumina Ceramic Tube | Feature: | High Hardness |
|---|---|---|---|
| Density: | 3.9 G/cm3 | Color: | Ivory Or White |
| Water Absorption: | 0% | Vickers Hardness: | 13Gpa |
| Flexural Strength (20°C): | 380Mpa | Hardness: | 85HRA |
| High Light: | 3.9g/Cm3 Ceramic Plunger, 85HRA Ceramic Plunger, 85HRA alumina ceramic tube |
||
99% Alumina Ceramic Piston Inferior Pump Component Wear Resistance High Hardness
Introduction
Part of ceramic insulation property:
1. High volume resistivity ≥1012ω·m;
2. Relative dielectric coefficient εr≤30;
3. Loss factor tgδ≤0.001;
4. High dielectric strength ≥500kv/cm
Part of temperature resistance property:
Aluminia ceramic> 1750℃
Zirconia ceramic> 1050℃
Silicon nitride > 1050℃
Silicon carbide > 1550 ℃
Part of wear resistance property:
Mohs hardness, 9
Rockwell hardness 85HRA
Water absorption, 0.2%
Volume density 3.65g/cm3
Parameters
Roperties |
Units |
Al2O3 99% |
|
Mechanical |
Density |
g/cm3 |
3.9 |
Color |
-- |
Ivory or white |
|
Water Absorption |
% |
0 |
|
Vickers Hardness |
Gpa |
13 |
|
Flexural Strength (20°C) |
Mpa |
380 |
|
Compressive Strength (20°C) |
Mpa |
3000 |
|
Thermal |
Thermal Conductivity (20°C) |
W/m.K |
25~35 |
Thermal Shock Resistance (20°C) |
ΔT(C) |
200 |
|
Maximum Use Temperature |
°C |
1700 |
|
Electrical |
Volume Resistivity (25°C) |
Ω.cm |
>1014 |
Details
Alumina is a most commonly used ceramic material for pump components for its low cost and striking durability. Usually pistons made from 99% alumina ceramic are used as an important components in heating, dosing and high pressure pumps used in industrial, food and agricultural applications where corrosion and abrasion resistance are required and service longevity is needed.
About Us
Suzhou Jingci Super Hard Materials Co., Ltdhas been working on production of ceramic piston and piston for more than nearly 20 years and has rich experience in producing and quality control, and can produce pistons and plungers with diameters from 3mm to 240mm and Ra0.25 surface. Jingci has been an outstanding supplier for famous international customers like Karcher, Wilo and AR pump these years. Jingci is always developing new thoughts and ways on the production of ceramic parts so as to provide qualified and economic products for customers’ critical-service application.
