How to Choose Alumina Ceramic Radial Bearings in 2026?

Choosing the right Alumina Ceramic Radial Bearing in 2026 requires more than comparing catalog prices. The bearing must match the shaft diameter, housing tolerance, radial load, rotation speed, and operating temperature. A small mismatch can create vibration, heat, or premature wear. These failures often begin quietly.

In practical equipment inspections, ceramic bearings may appear clean while their seals, cages, or mating surfaces cause problems. Alumina offers strong corrosion resistance and electrical insulation, but it is not immune to impact or misalignment. Engineers should examine material grades, dimensional accuracy, surface finish, cage design, and supplier test records. Pay close attention to the real environment. Dust changes everything. So does moisture.

A reliable selection process connects laboratory data with field experience. Ask for load ratings, speed limits, temperature ranges, inspection reports, and traceable manufacturing information. Check whether the bearing suits dry running, light lubrication, vacuum conditions, or chemical exposure. Do not rely on a single impressive specification. It can mislead. A supplier with clear quality controls and documented testing usually provides stronger confidence than one offering vague performance claims. Standards and application requirements may also change during 2026, so technical verification remains important. No selection method is flawless. Trial fitting, monitoring noise, and recording operating temperature can reveal assumptions that paperwork misses. This guide explains the key decisions, common oversights, and practical checks needed to choose an Alumina Ceramic Radial Bearing with greater confidence.

Table of Contents [Hide]

1 Alumina Ceramic Radial Bearings: 95–99.9% Al₂O₃ Grades and Their Properties

2 Choose Bearing Loads Below 10–20% of Alumina’s 300–500 MPa Strength

3 Match Operating Temperatures to Alumina’s 1,600–1,800°C Thermal Rating

4 Compare Speed, Friction, and Clearance for 10⁴–10⁶ Rotation Cycles

5 Verify ISO 3290 Dimensions, Seal Design, and 2026 Supplier Quality Data

Alumina Ceramic Radial Bearings: 95–99.9% Al₂O₃ Grades and Their Properties

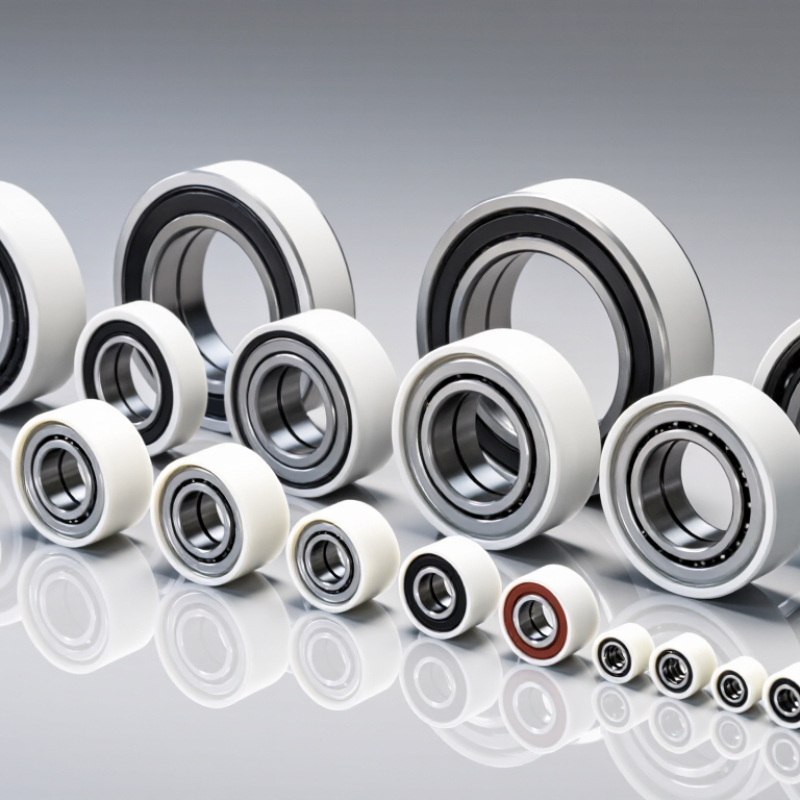

How to Choose Alumina Ceramic Radial Bearings in 2026?

Alumina ceramic radial bearings are available in roughly 95% to 99.9% Al₂O₃ grades. Purity changes more than chemical resistance. It also affects density, hardness, strength, porosity, and thermal behavior. Technical property tables compiled by the U.S. Department of Energy commonly place alumina density near 3.7–3.9 g/cm³. Reported flexural strength often ranges from 300 to 500 MPa, depending on processing and grain structure.

A 95% alumina grade usually contains more glassy secondary phases. It can offer practical cost control and adequate wear resistance for moderate loads. However, its corrosion and insulation performance may be less consistent.

Higher-purity grades, such as 99.5% and 99.9%, generally provide better chemical stability and lower impurity content. They suit vacuum equipment, clean fluid systems, and high-temperature assemblies. Very hard surfaces can still fail under impact.

Not indestructible.

Bearing selection must include radial load, speed, shaft hardness, clearance, lubrication, and thermal expansion. ISO 6474-1 provides a useful framework for advanced ceramic material classification, but it does not replace application testing. In laboratory comparisons, alumina commonly reaches about 9 on the Mohs scale, while thermal conductivity varies widely with purity and microstructure. That variation matters near heaters or dry-running zones.

A common mistake is choosing 99.9% alumina only because the number looks superior. I would recheck edge loading, surface finish, and mounting stress first. Even an excellent ceramic grade can crack during assembly.

Choose Bearing Loads Below 10–20% of Alumina’s 300–500 MPa Strength

How to Choose Alumina Ceramic Radial Bearings in 2026?

For 2026 designs, treat 300–500 MPa as alumina’s flexural-strength range, not its safe bearing load. ASM Handbook, Volume 18, reports wide variation from purity, porosity, grain size, and surface defects. A practical screening rule limits the applied load to 10–20% of that range, or approximately 30–100 MPa. This is a design ceiling, not a guarantee.

Load direction matters. Radial bearings experience concentrated contact stress, edge loading, and vibration near the raceway. ISO 76 recommends checking static load capacity, while ISO 281 addresses rating life under repeated loading. Calculate both, then derate for misalignment, contamination, thermal expansion, and poor lubrication. A 60 MPa application may appear acceptable, yet a sharp shaft shoulder can create a local failure point.

Keep it conservative.

In laboratory fitting work, clean assembly and controlled interference often matter more than a small strength increase. Use polished mating surfaces, verify shaft roundness, and record temperature during endurance testing. Ceramic strength data usually come from ideal specimens. Real bearings contain flaws. Weibull analysis can expose this gap, but many early designs skip it. That omission deserves reconsideration, especially where shock loads exceed the calculated radial force. Choose a bearing with a tested static margin, not merely a catalogue strength value.

Match Operating Temperatures to Alumina’s 1,600–1,800°C Thermal Rating

How to Choose Alumina Ceramic Radial Bearings in 2026?

The 1,600–1,800°C figure is not a guaranteed bearing operating temperature. It describes alumina’s approximate high-temperature capability under controlled conditions. ASM Handbook, Volume 4A, reports alumina melting near 2,050°C. However, strength, dimensional stability, and thermal conductivity change before melting occurs.

Match the bearing to the real temperature at the raceway, not the furnace atmosphere. Measure the inner ring, outer ring, and shaft during full-speed operation. A 1,500°C chamber may produce a much cooler bearing surface. Or not. Radiant heat, friction, load, and poor heat dissipation can create severe local gradients.

For continuous service, leave a conservative margin below the published 1,600–1,800°C rating. ISO 76 load-rating methods do not fully describe ceramic performance at extreme temperatures. Therefore, request temperature-dependent strength, creep, and thermal-expansion data. ASTM C1161 strength testing and ASTM C1525 thermal-shock testing can support supplier comparisons.

Alumina expands less than many metals, but mismatched expansion can still preload the bearing. The ASM data also show that thermal conductivity varies with purity and temperature. High purity may improve insulation, yet it can reduce tolerance for sudden temperature changes. I would not select solely from a catalog number. Test a loaded sample through repeated heating cycles, then inspect raceway wear, cracking, and clearance loss.

How to Choose Alumina Ceramic Radial Bearings in 2026?

Match operating temperatures to alumina’s 1,600–1,800°C thermal rating.

Select the bearing according to the actual temperature at the raceway and rolling elements, not only the surrounding furnace or chamber temperature. The 1,600–1,800°C range is a material thermal reference; the practical operating limit can be lower because of load, speed, thermal gradients, atmosphere, dimensional changes, and cage or lubricant limitations. Alumina’s approximate melting point is about 2,050°C and should not be treated as a safe operating temperature.

Compare Speed, Friction, and Clearance for 10⁴–10⁶ Rotation Cycles

Selecting an alumina ceramic radial bearing for 10⁴ to 10⁶ rotation cycles requires more than checking maximum speed. Start with the shaft diameter, radial load, temperature, and operating atmosphere. A bearing may survive one million cycles at moderate speed, yet fail early under misalignment or dry contamination. Test conditions matter.

Speed and friction must be evaluated together. Higher speed increases heat, even when ceramic rolling elements reduce sliding contact. Measure running torque after stabilization, not immediately after installation. Low friction is useful, but excessively light preload can create vibration and impact damage. A practical test should record temperature, noise, torque, and visible raceway wear at 10⁴, 10⁵, and 10⁶ cycles. Short checkpoints reveal changing behavior.

Clearance is often the overlooked variable. Tight internal clearance can improve radial accuracy, but thermal expansion may cause binding. Excessive clearance allows shaft movement and uneven load distribution. For a small precision assembly, measure shaft and housing fits at actual operating temperature. Do not rely only on catalog limits. I would also question a speed claim tested without realistic load or lubrication. That result may be technically correct, but operationally weak. In real equipment, dust, interrupted motion, and imperfect alignment can matter more than the headline rating. Choose the bearing whose speed, friction, and clearance remain stable across the complete cycle range.

How to Choose Alumina Ceramic Radial Bearings in 2026? — Compare Speed, Friction, and Clearance for 10⁴–10⁶ Rotation Cycles
Duty Scenario	Recommended Bearing Construction	Typical Speed Range	Estimated Friction Coefficient	Recommended Cold Radial Clearance	Target Rotation Life	Relative Heat Risk	Selection Notes
Low-speed, dry or intermittent motion	Full alumina rings and balls with a ceramic or high-temperature polymer cage	300–1,500 rpm	0.20–0.45 dry 0.08–0.18 with compatible solid or boundary lubrication	5–10 μm for a small bearing with approximately 10 mm bore	10⁴–10⁵ revolutions	Low	Suitable when chemical resistance, electrical insulation, and corrosion resistance are more important than minimum friction.
Moderate-speed precision rotation	Full alumina bearing with precision-ground raceways and a low-friction cage	1,500–6,000 rpm	0.08–0.20 with light compatible lubrication	6–12 μm	10⁵–3 × 10⁵ revolutions	Low to medium	Use controlled preload or minimal clearance only after thermal growth, mounting fit, and lubricant compatibility have been checked.
High-speed, lightly loaded spindle	Precision full alumina bearing with ceramic cage and low-viscosity compatible lubricant	6,000–12,000 rpm	0.04–0.12 with proper lubrication	8–15 μm	3 × 10⁵–10⁶ revolutions	Medium	Balance the bearing, shaft, and housing carefully. Excessive clearance increases vibration; insufficient clearance can cause rapid thermal seizure.
High-speed, low-contamination service	Full alumina bearing with non-metallic cage and clean-room-compatible lubrication	8,000–18,000 rpm	0.03–0.10 with suitable lubrication	10–18 μm	10⁵–10⁶ revolutions	Medium to high	Verify the manufacturer’s speed limit for the actual bearing size. At high speed, lubricant loss, cage instability, and contamination often dominate life.
Thermal cycling or elevated temperature	Full alumina rings and balls with a temperature-rated ceramic cage	300–3,000 rpm	0.10–0.30, depending on lubrication and temperature	10–25 μm at room temperature	10⁴–3 × 10⁵ revolutions	Medium to high	Alumina has low thermal expansion compared with many metals, but housing and shaft expansion can still alter operating clearance substantially.
Oscillating or frequently reversing motion	Full alumina bearing with polished raceways and a cage designed for low-speed reversal	Equivalent speed below 1,500 rpm	0.15–0.40 under boundary conditions	5–15 μm	10⁴–10⁵ equivalent revolutions	Low to medium	Calculate life from oscillation angle, load, and sliding distance rather than rpm alone. False brinelling and lubricant displacement can limit performance.
Moderate radial load with contamination risk	Full alumina bearing with protective seals only when seal drag and speed limits are acceptable	300–4,000 rpm	0.10–0.25 with clean lubrication 0.25–0.50 if abrasive particles enter	8–18 μm	10⁴–10⁵ revolutions	High if contaminated	Alumina is hard and corrosion-resistant, but abrasive particles can still damage raceways and increase torque. Sealing and cleanliness are essential.
Electrical insulation requirement	All-ceramic alumina radial bearing with non-metallic cage	1,000–8,000 rpm	0.06–0.18 with compatible lubrication	6–15 μm	10⁵–10⁶ revolutions	Medium	Provides electrical isolation, but the complete assembly must also prevent conductive paths through the shaft, housing, lubricant, seals, and mounting hardware.

Data basis and limitations:

The ranges above are engineering screening values, not guaranteed ratings. Actual friction, speed capability, clearance, and fatigue life depend on bearing size, alumina purity and density, surface finish, load, lubricant, cage design, fits, temperature, contamination, alignment, and duty cycle.

Friction coefficients are approximate tribological ranges for clean, lightly loaded ceramic contacts; they should not be treated as catalog values. For a final selection, calculate operating clearance after thermal expansion and confirm the supplier’s dynamic load, limiting-speed, lubricant, and life data for the exact bearing geometry.

For the stated 10⁴–10⁶ rotation-cycle range, one million revolutions equals approximately 16.7 hours at 1,000 rpm, 1.67 hours at 10,000 rpm, or 33.3 minutes at 30,000 rpm.

Verify ISO 3290 Dimensions, Seal Design, and 2026 Supplier Quality Data

When choosing alumina ceramic radial bearings in 2026, verify dimensions against the relevant ISO 3290 requirements. Confirm bore diameter, outside diameter, width, radial clearance, and running accuracy. Ceramic materials do not excuse dimensional mistakes. A catalog value is only a starting point.

Ask for controlled inspection records from the production lot. Check tolerance measurements, roundness results, surface finish, and batch traceability. Request samples before approving volume orders. Measure them under stable temperature conditions. Small thermal changes can affect tight fits. I once approved a bearing from a drawing alone, then found a clearance mismatch during assembly. That experience still influences my checks.

Seal design also needs practical testing. Contact seals usually protect better against dust and moisture, but they can increase friction and heat. Shields may reduce drag, yet they offer less contamination protection. For clean, high-speed equipment, that difference matters. For exposed mechanisms, it may not. Ask suppliers for seal material, temperature limits, torque data, and leakage test methods.

Supplier quality data should reflect 2026 performance, not old marketing claims. Request recent defect rates, process capability results, corrective-action records, and delivery consistency. Review certificate authenticity and lot-level traceability. Supplier audits can reveal weak inspection habits. Numbers need context. Question the gaps. A low defect rate means little without sampling rules and customer complaint data.
